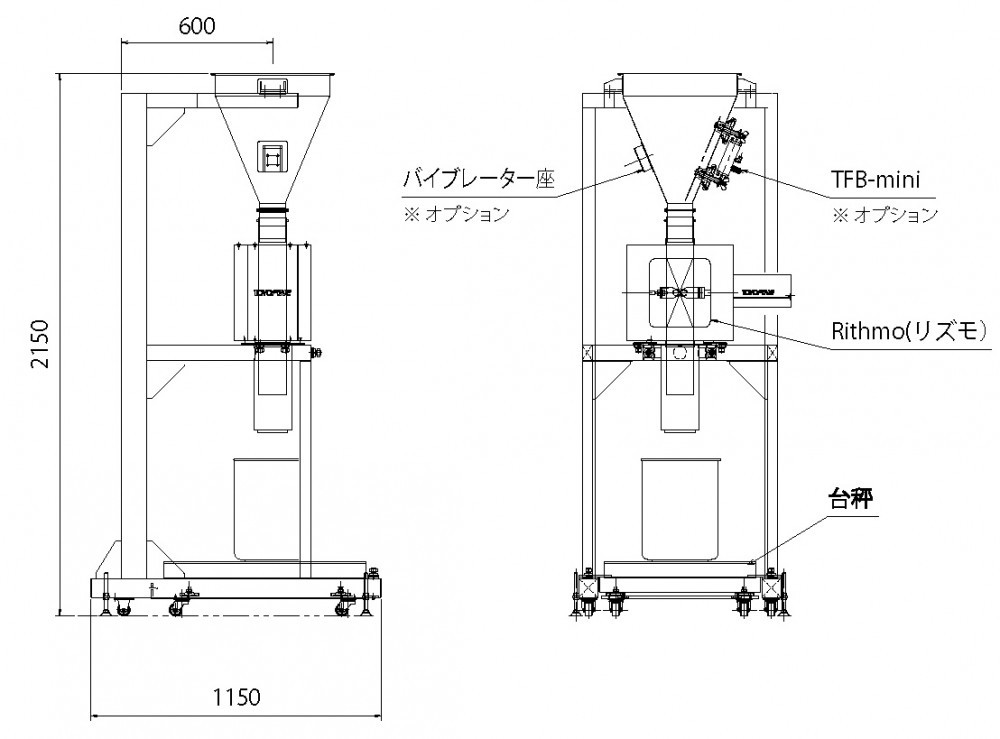

Dimensions・Device

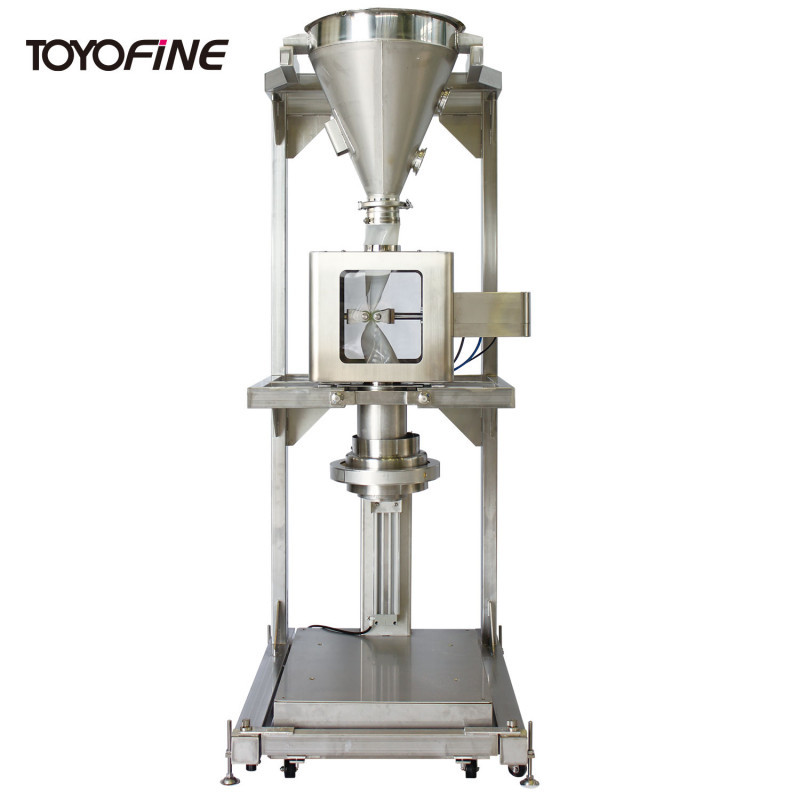

Pinch-valve type weighing and filling system
Rithmo
High accuracy weighing! This weighing and filling system is easy to clean
Features
● High accuracy weighing
Calculating changes in the weight value and controlling the valve opening allows discharge to be controlled in units of 1g.
● Quickly weighing
Quickly weighing is possible by means of automatic setting of valve opeing amount.
● Superior ease of cleaning

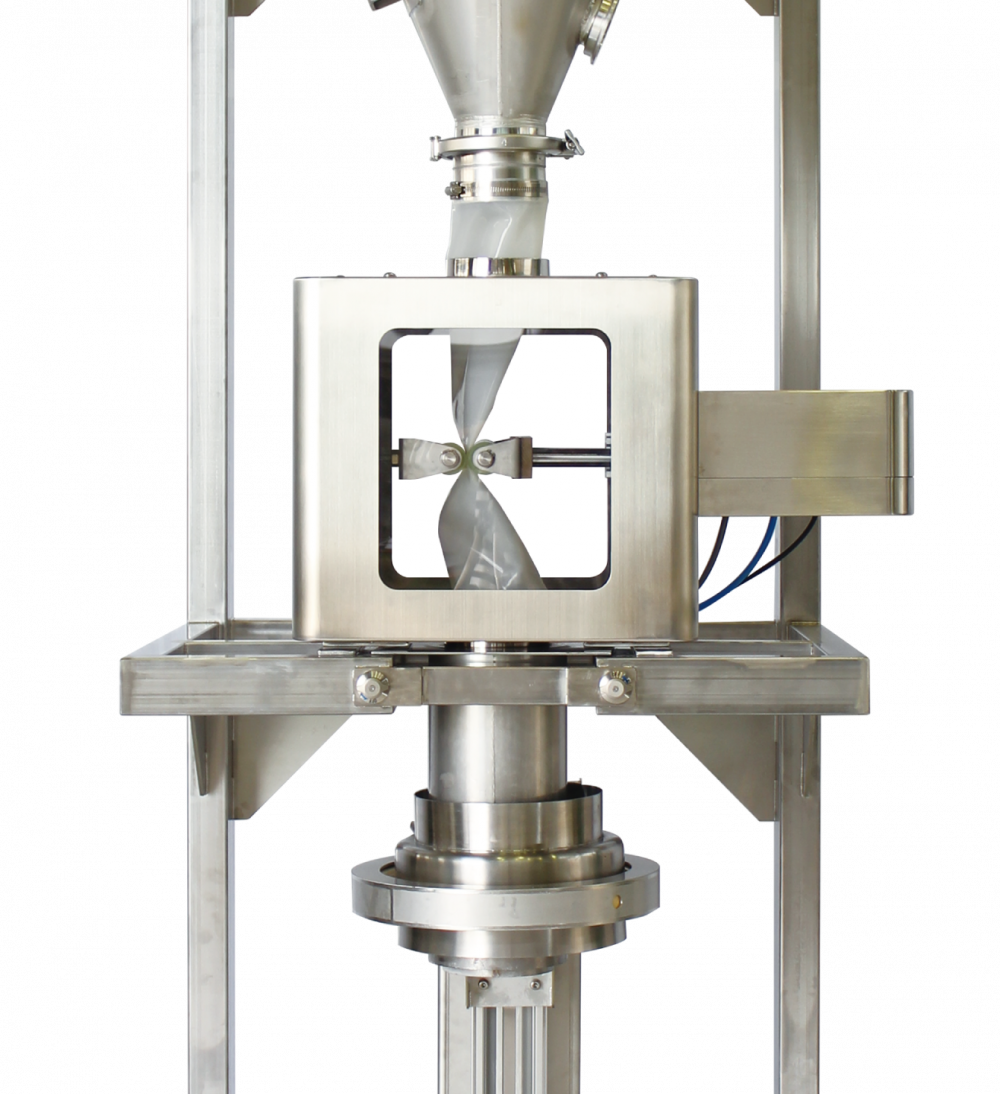

Because all parts which contact the powder consist of flexible silicon tubing, they can be easily disassembled, reassembled and cleaned.
● No metal contamination
There are no mechanical parts inside system and the structure is enclosed, preventing contamination.
● Support for a wide range of powders
By installing a TFB-mini (Breaker Boy), vibrator, or knocker onto the hopper, this system can be used for various powders.
● Low price
By simple configuration, it is a good value for the price.
Calculating changes in the weight value and controlling the valve opening allows discharge to be controlled in units of 1g.
● Quickly weighing
Quickly weighing is possible by means of automatic setting of valve opeing amount.
● Superior ease of cleaning
Because all parts which contact the powder consist of flexible silicon tubing, they can be easily disassembled, reassembled and cleaned.
● No metal contamination
There are no mechanical parts inside system and the structure is enclosed, preventing contamination.
● Support for a wide range of powders
By installing a TFB-mini (Breaker Boy), vibrator, or knocker onto the hopper, this system can be used for various powders.
● Low price
By simple configuration, it is a good value for the price.
Specifications
| Model | RP-100-S | RP-125-S | RP-150-S |
|---|---|---|---|
| Valve diameter | φ100mm | φ125mm | φ150mm |
| Weighing range | 1kg～30kg（Recommended value） | 1kg～30kg（Recommended value） | 1kg～30kg（Recommended value） |
| Weighing accuracy | ±５～10g（Depends on filling material.） | ±５～10g（Depends on filling material.） | ±５～10g（Depends on filling material.） |
| Capacity | 10kg/60秒（Depends on filling material.） | 10kg/60秒（Depends on filling material.） | 10kg/60秒（Depends on filling material.） |
| Control methode | Control opening amount based on weight calculation | Control opening amount based on weight calculation | Control opening amount based on weight calculation |
| Utilities | Compressed air（0.5MPa）～300NL/min | Compressed air（0.5MPa）～300NL/min | Compressed air（0.5MPa）～300NL/min |
| Power supply | AC100V | AC100V | AC100V |
| Material | SUS304/Urethane/silicon | SUS304/Urethane/silicon | SUS304/Urethane/silicon |
| Dimensions（mm） | W850×L1150×H2500 | W850×L1150×H2500 | W850×L1150×H2500 |
※ When weight control is not required, can be used as a constant volume discharge valve.
Application examples
| Raw material | Bulk density (g/cm3) | Measuring weight（kg） | Accuracy（g） | Filling time（sec） |
|---|---|---|---|---|
| Anode active material | 1 | 45 | 0〜＋10 | 120 |
| Carbon black | 0.15 | 7 | 0～＋5 | 120 |
| Carbon black | 0.15 | 1 | 0～＋3 | 90 |
| Carbon nanotubes | 0.05 | 1 | 0～＋3 | 120 |
| Graphite | 0.8 | 30 | 0～＋150 | 90 |
| Toner | 0.25 | 6 | 0～＋20 | 90 |
| Instant coffee | 0.2 | 3 | 0～＋25 | 30 |
| Spices | 0.4 | 15 | 0～＋10 | 60 |
| Powdered seasoning | 0.7 | 5 | 0～＋2 | 50 |
| Dextrin | 0.45 | 5 | 0～＋5 | 60 |
| Barium titanate | 1.4 | 10 | 0～＋5 | 60 |
